Filtering Mechanical Screen Wastewater , Rotary Drum Screen Internal Feed Customized

Name: Filtering Mechanical Screen Wastewater Rotary Drum Screen Internal Feed Customized
Brand: BOWEE WATER
Price: 1 USD

Filtering Mechanical Screen Wastewater , Rotary Drum Screen Internal Feed Customized Manufactures

Brand Name : BOWEE WATER

Model Number : BWSIF

Certification : ISO9001 CE SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 100 sets per month

Delivery Time : 15-30days

Packaging Details : Wooden case

Material : SS304/SS316

Warranty : 1 Year

Product name : Rotary drum screen, Internal feed Drum filter screen,Rotary filter screen

Application : Wastewater Treatment,Water Treatment

Power : 0.37-1.5kw

Color : Customized

Function : Filtering Suspended Matter,Remove bigger reject,Solid-liquid Separation

Service life : 10 years

Dimension : Customized

Capacity : As the requirements

Voltage : Customized

Motor : Domestic or Imported brand

Operation : Automatic

Contact Now

Filtering Mechanical Screen Wastewater , Rotary Drum Screen Internal Feed Customized

Description:

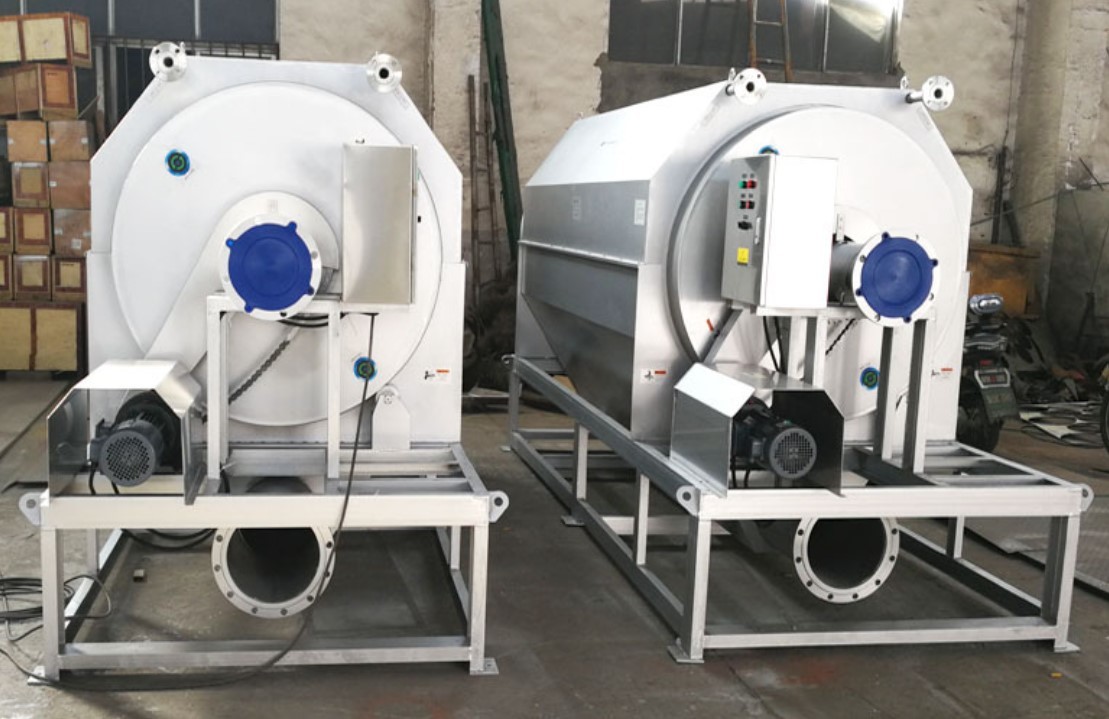

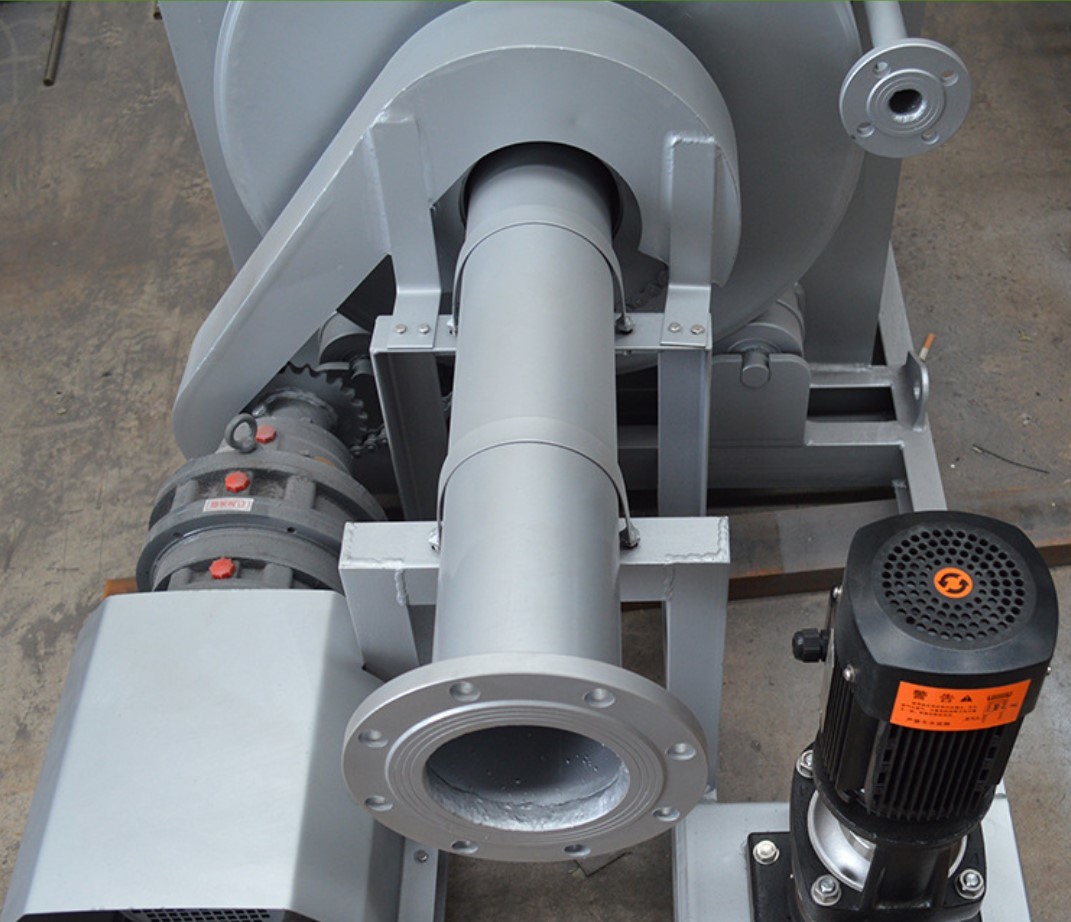

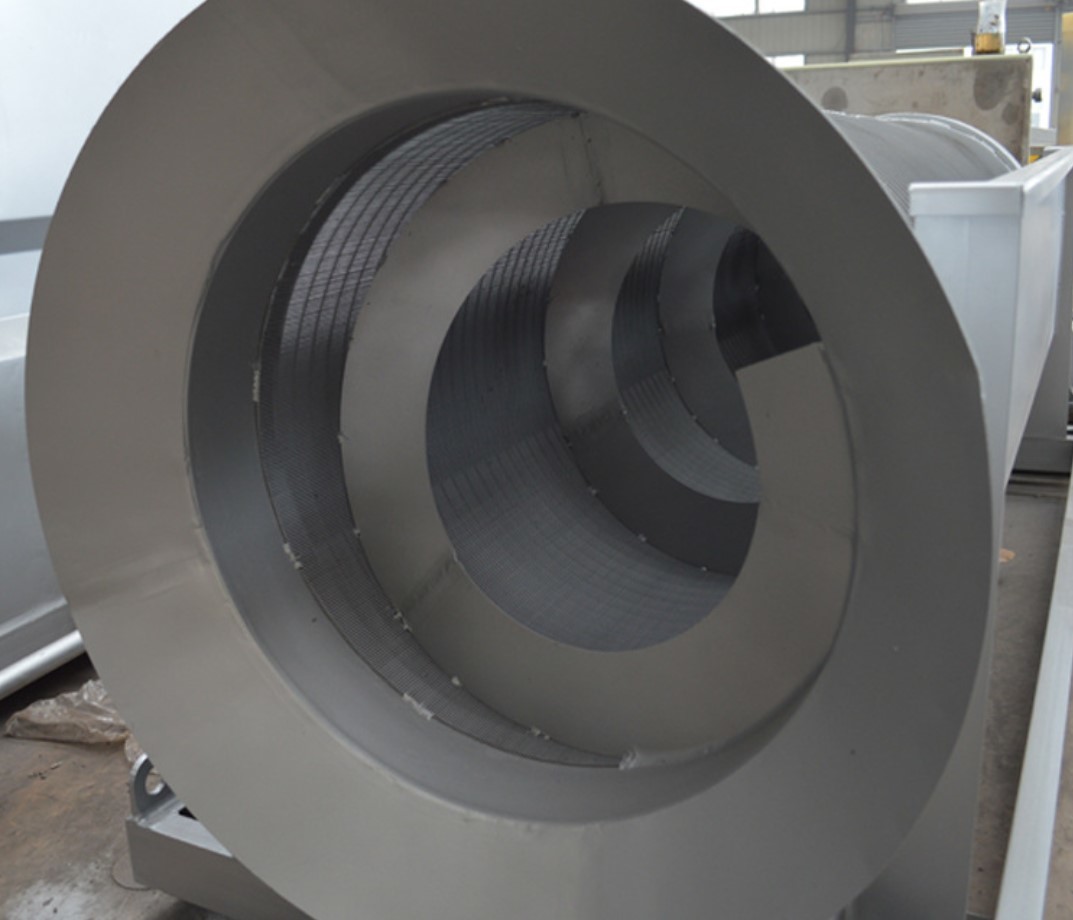

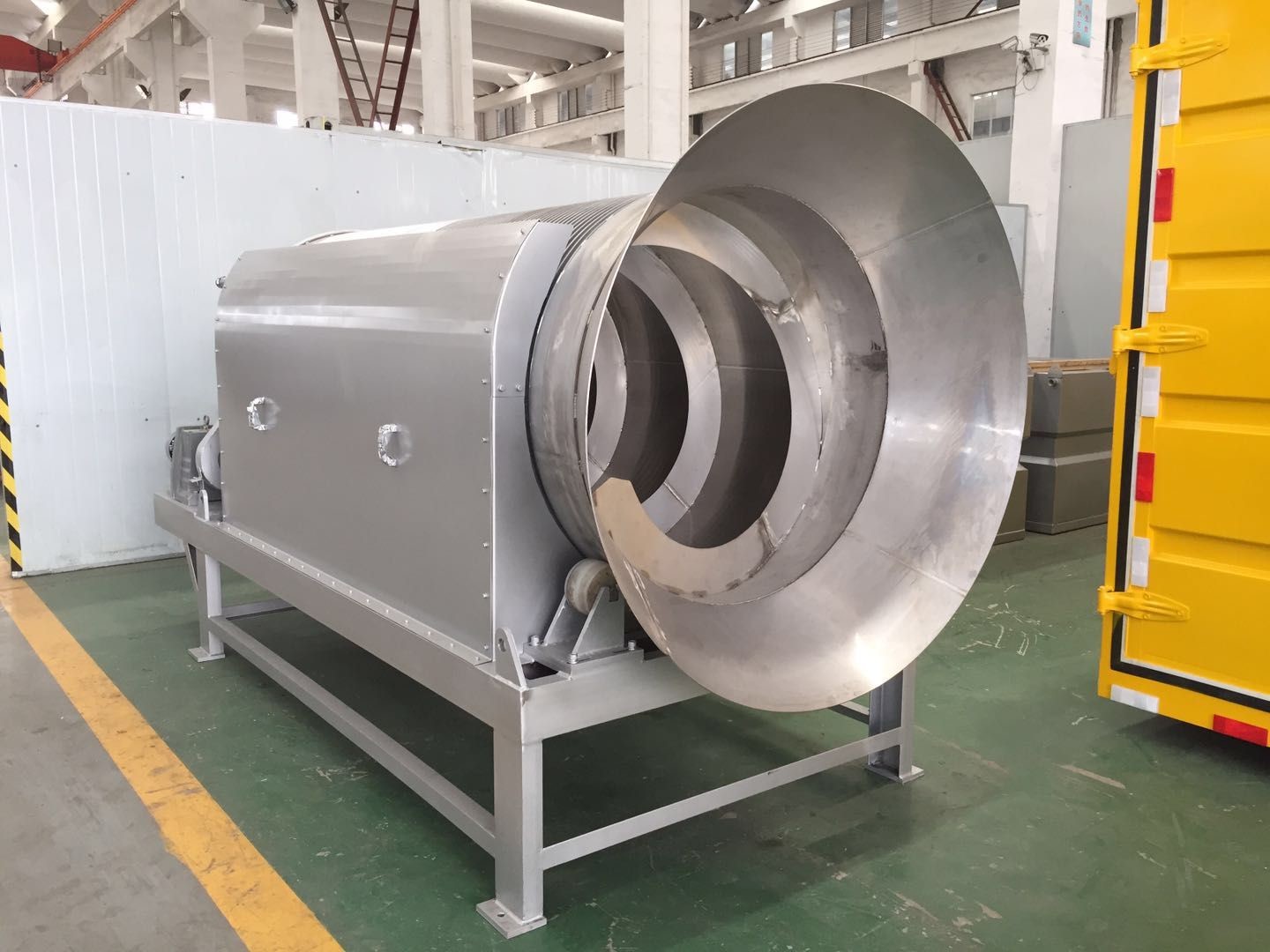

The Internal-feed Rotary Drum Screen is composed of a tank and a spiral connected to the drum for the transport of screening. The screen is composed of a perforated plate or wedge wire whose holes diameter is as big as the desired openings size. The drum is supported by nylon wheels, and it is operated by a gearbox. The filter is fed through a nozzle placed in the front of the machine. The nozzles spread the water on a large area of the screen which, rotating, separates water from the organic particles contained. The filter is cleaned by means of a washing system composed of a tube equipped with spray nozzles for pressure water.

During the screen operation, the water is conveyed towards the outlet placed in the front of the machine, while the screening is transported through the spiral towards the screening outlet installed in the back of the machine. The screen special inclination towards the outlet contributes to the dewatering of screening. The screen is equipped with a by pass nozzles protecting the filter from overflows, and with an optional arrangement for an overflow probe.

Applications:

It is very suitable for pretreatment of Municipal and industrial waste water.

Technical Parameters:

Model	Screen size (mm)	Mesh size (mm)	Max capacity (m3/h)	Dimension (mm)	Power (kW)	Material
BWSIF-300	φ300*800	0.15-5	5-65	16005001200	0.55	SS304,SS316
BWSIF-400	φ400*1000	0.15-5	10-120	22006001300	0.55	SS304,SS316
BWSIF-500	φ500*1000	0.15-5	15-190	22007001300	0.75	SS304,SS316
BWSIF-600	φ600*1200	0.15-5	20-270	24007001400	0.75	SS304,SS316
BWSIF-700	φ700*1500	0.15-5	30-370	27009001500	0.75	SS304,SS316
BWSIF-800	φ800*1600	0.15-5	40-480	280010001500	1.1	SS304,SS316
BWSIF-900	φ900*1800	0.15-5	50-610	300011001600	1.5	SS304,SS316
BWSIF-1000	φ1000*2000	0.15-5	65-750	320012001600	1.5	SS304,SS316
